RIVET- Geared (GRX)
Couldn't load pickup availability
Featuring everything that makes the caveworks RIVET the most useful and best-performing indoor machine available: suitable for any geometry; easy, continuous adjustments to dial in fit; built to industry standards so you can swap in parts of your choice; and mechanical performance that delivers every watt to your smart trainer. No more transition adjustments for the outdoor bike, no more outdoor drivetrain contaminants, and no more expensive parts that play no role in your indoor training. One frame works for multiple riders. The geared RIVET is equipped with 1x12 Shimano GRX, ideal for those already running 12-speed-compatible smart trainers. Together with dialing in your trainer difficulty settings, this 1x12 can offer every gear you need for training and racing without sacrificing smooth steps between gears.
The caveworks RIVET geared: designed for those with a need for real-world shifting.
- Equipped with a 48-tooth front chainring and 1x12 Shimano GRX drivetrain.
- Riders can dial in their fit by choosing their preferred crank arm length (170mm, 172.5mm, 175mm)
TECHNICAL SPECIFICATIONS
- 4130 steel frame, powder coated for durability
- 12x142mm rear axle spacing, with UDH
- 12x110mm front axle spacing (offering enhanced front-end rigidity and compatible with the Wahoo Kickr Climb gradient simulator)
- 30.9mm seat post and stem tube diameter
- 68mm Threaded BB
- Removable feet with spacers to accommodate third-party trainers of varying rear axle heights (essentially, the spacers adjust front-end heights according to whether the third-party trainer was designed to be ridden at ground level or with a riser block)
- Mounting for 2 water bottle cages

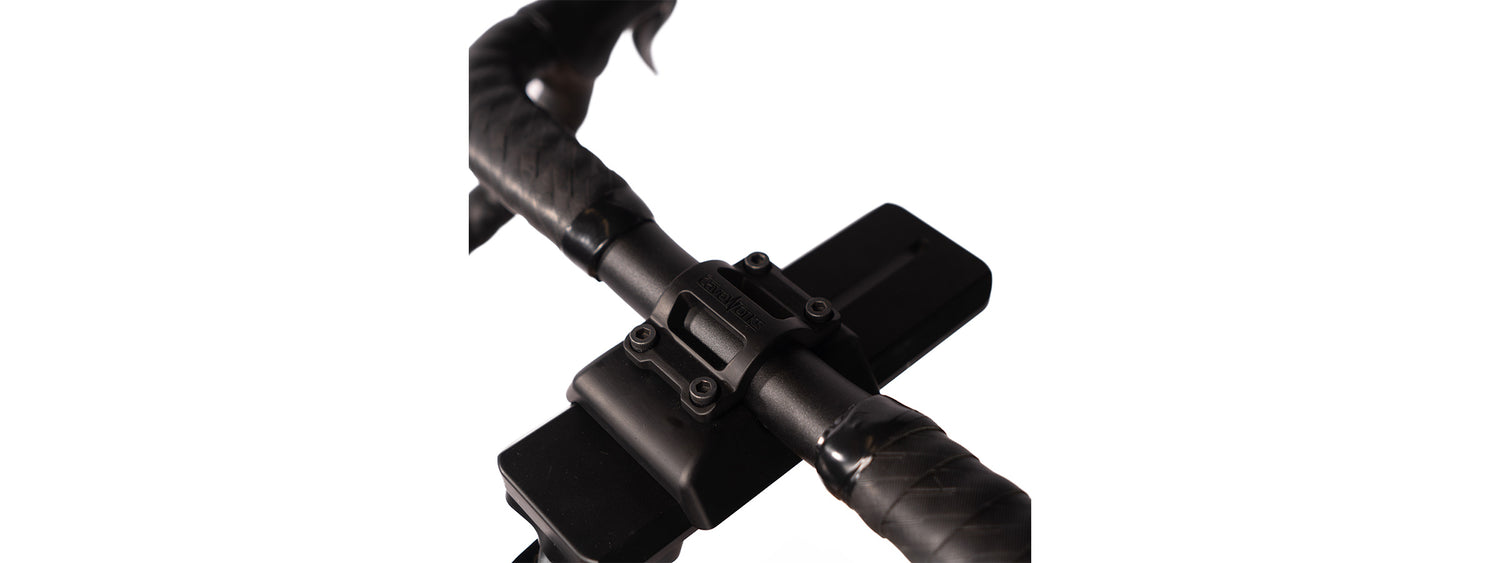

STEM
- Proprietary caveworks adjustable stem, 6061 aluminum, anodized black
- 120mm of continuous fore-aft adjustment, all achieved with a quick turn of the adjustment knob.
BUILD SPECIFICATIONS
STEM
- Proprietary caveworks adjustable stem, 6061 aluminum, anodized black
- 120mm of continuous fore-aft adjustment, all achieved with a quick turn of the adjustment knob.
HANDLEBAR
- caveworks branded 420mm width with a 16 degree flare on the drops
- Bar tape: Ergon BT Allroad, 2.5mm thick for comfort
- Dummy hoods installed to provide proper ergonomics and replicate hand positions typical of drop bar bikes
SEATPOST
- caveworks branded 30.9mm x 450mm

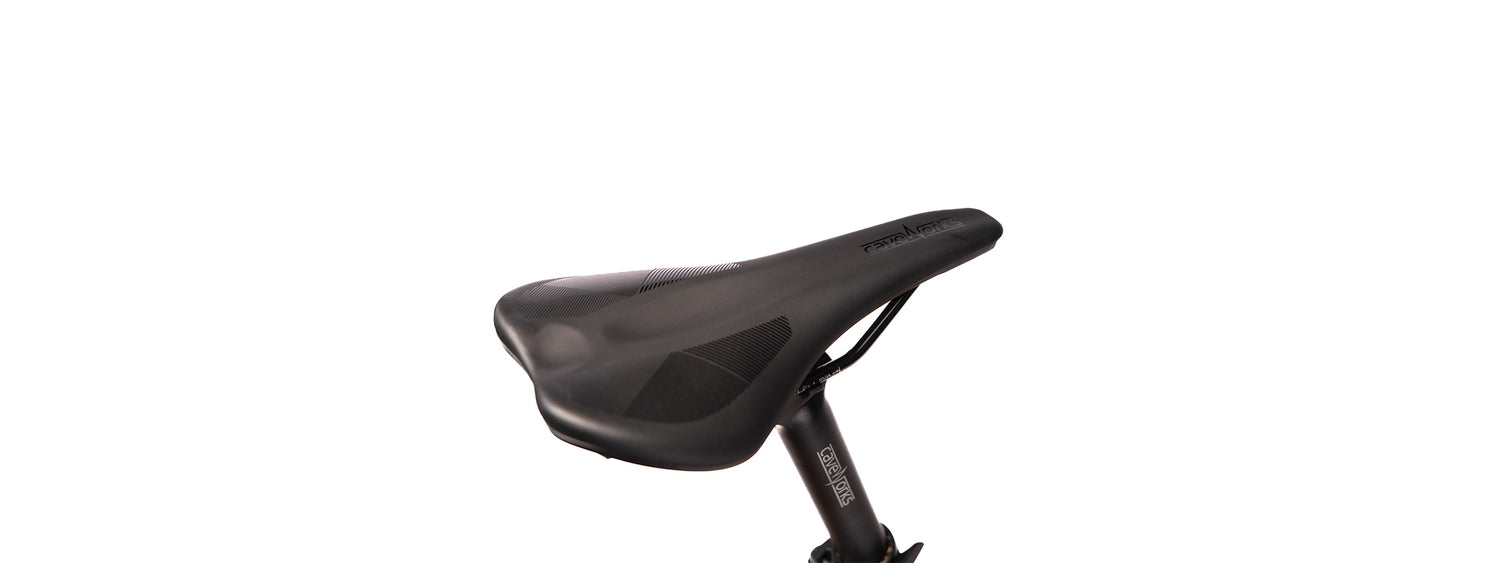

SADDLE
- caveworks branded 143mm width, chromoly rails

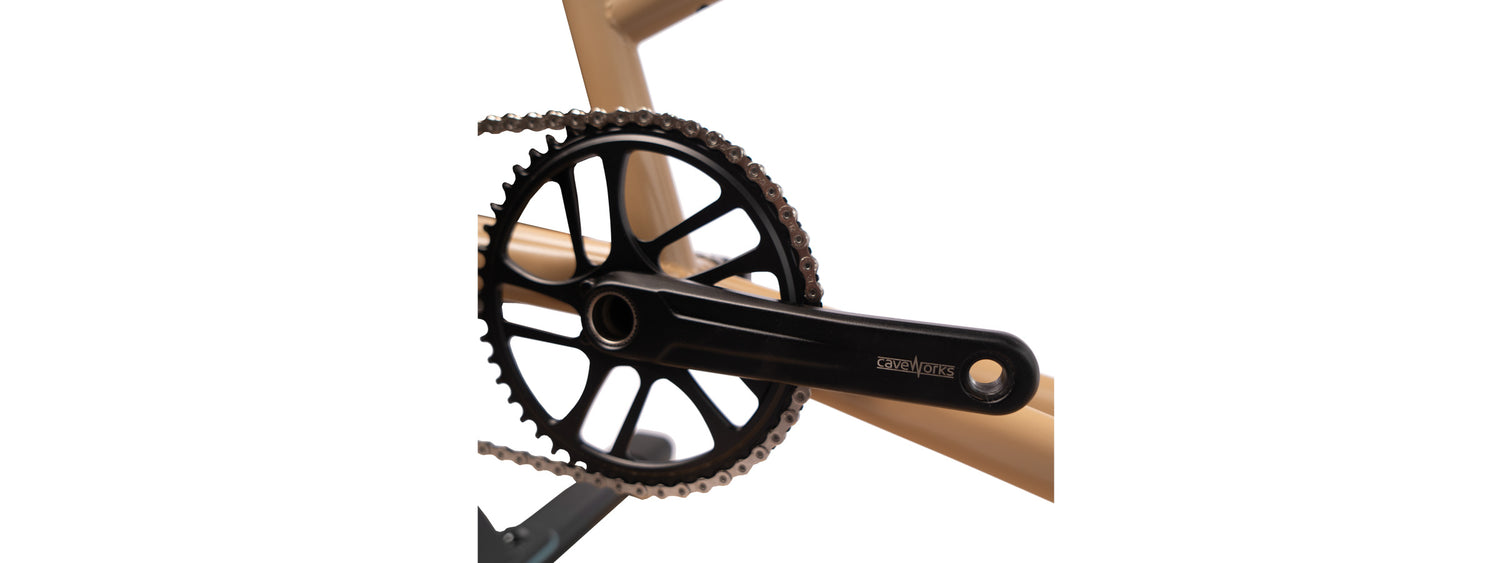

CRANKSET
- caveworks branded 48t 12spd, available in 170mm, 172.5mm, 175mm lengths

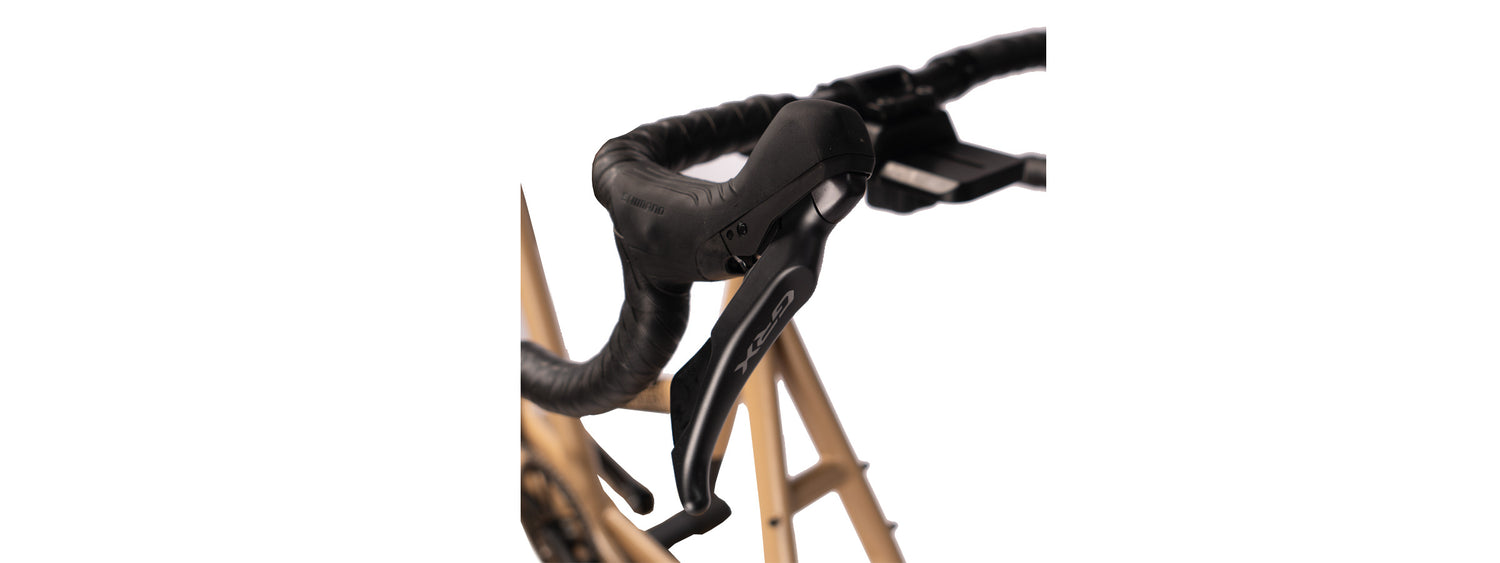

SHIFTERS
- Shimano GRX 12spd
REAR DERAILLEUR
- Shimano GRX 12spd
CHAIN
- KMC X12 12spd.
