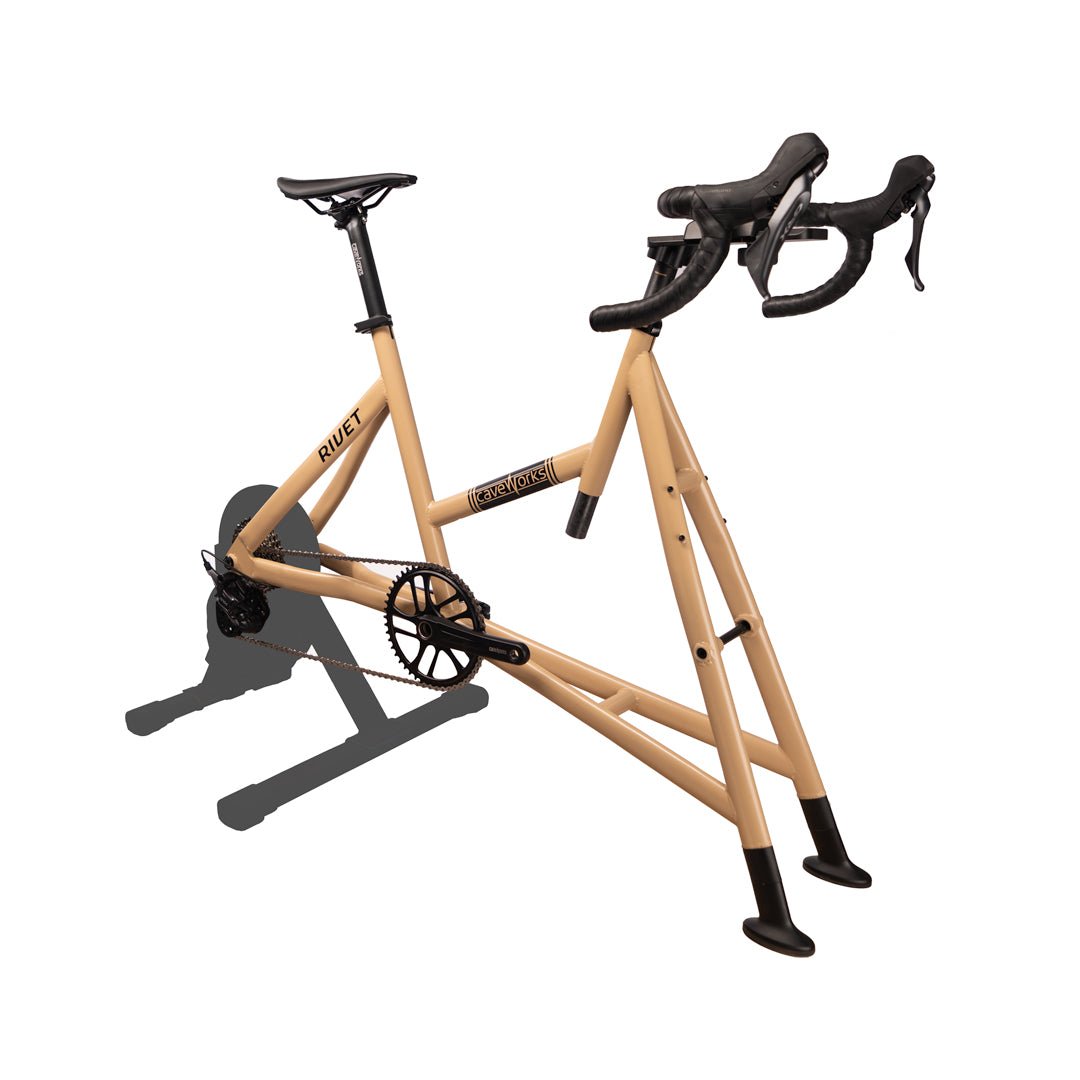

caveworks RIVET geared
Equipped with 1x12 Shimano GRX, the geared option is ideal for those already running 12-speed-compatible smart trainers. Together with your trainer difficulty settings, this 1x12 can offer every gear you need for training and racing without sacrificing smooth steps between gears.
caveworks RIVET geared details
The caveworks RIVET geared: designed for those with a need for real-world shifting.
- Equipped with a 48-tooth front chainring and 1x12 Shimano GRX drivetrain.
- Riders can dial in their fit by choosing their preferred crank arm length (170mm, 172.5mm, 175mm)
TECHNICAL SPECIFICATIONS
- 4130 steel frame, powder coated for durability
- 12x142mm rear axle spacing, with UDH
- 12x110mm front axle spacing (offering enhanced front-end rigidity and compatible with the Wahoo Kickr Climb gradient simulator)
- 30.9mm seat post and stem tube diameter
- 68mm Threaded BB
- Removable feet with spacers to accommodate third-party trainers of varying rear axle heights (essentially, the spacers adjust front-end heights according to whether the third-party trainer was designed to be ridden at ground level or with a riser block)
- Mounting for 2 water bottle cages
Stem
- Proprietary caveworks adjustable stem, 6061 aluminum, anodized black
- 120mm of continuous fore-aft adjustment, all achieved with a quick turn of the adjustment knob.
BUILD SPECIFICATIONS
STEM
- Proprietary caveworks adjustable stem, 6061 aluminum, anodized black
- 120mm of continuous fore-aft adjustment, all achieved with a quick turn of the adjustment knob.
HANDLEBAR
- caveworks branded 420mm width with a 16 degree flare on the drops
- Bar tape: Ergon BT Allroad, 2.5mm thick for comfort
SEATPOST
- caveworks branded 30.9mm x 450mm
SADDLE
- caveworks branded 143mm width, chromoly rails
CRANKSET
- caveworks branded 48t 12spd, available in 170mm, 172.5mm, 175mm lengths
SHIFTERS
- Shimano GRX 12spd
REAR DERAILLEUR
- Shimano GRX 12spd
CASSETTE
- Shimano 105 12spd (11-34t)
CHAIN
- KMC X12 12spd.
